| brand | Megger |
|---|---|
| model | CFL535G |
Product Details

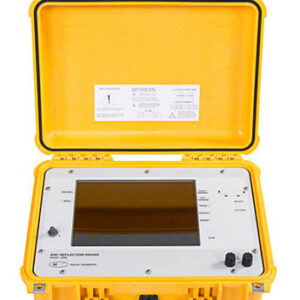

The Megger CFL535G Advanced Dual Channel TDR is a state of the art, dual channel, high resolution, compact Time Domain Reflectometer with a color screen for locating faults on paired metallic cables.
The CFL535G has a minimum resolution of 0.3 ft /0.1 m and a 60 kft/20 km maximum range depending on the velocity factor selected and the cable type.
Five output impedances are available (25, 50, 75, 100, 125 ohms) and an auto impedance matching feature.
The velocity factor can be set between 0.2 and 0.99 to meet any cable test requirements.
Megger CFL535G Advanced Dual Channel TDR features:
- 600 V CAT IV input protection filter built in (Model TDR2050)
- Step and pulse TDR selections
- Distance dependent gain
- Test straight from the box
- Trace tagging
- 2ns pulse width
- Designed for use on all metallic paired cables
