| brand | High Voltage |
|---|---|
| model | TDR1669 |
Product Details

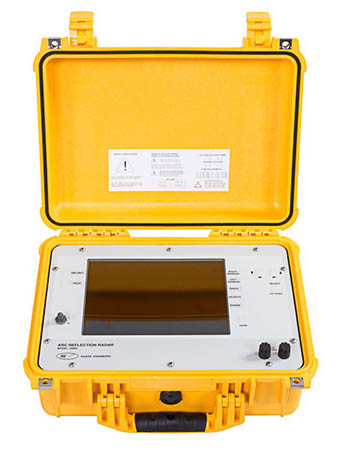

High Voltage TDR1669 Time Domain Reflectometer is used to locate issues in copper, coax, and metallic cables and wiring.
High Voltage TDR1669 Time Domain Reflectometer features:
- Time Domain Reflectometer
- Designed for use with impulse generators (Thumpers) and arc reflection systems
- Captures and holds the waveform created when a thump causes a fault to arc to ground.
- Ranges of 500 (default), 1500, 3000, 6000, 12000, 24000 and 48000 feet are available
- Toggle between live trace TDR mode and Arc Reflection mode • Hold function for freezing the “thumped” waveform during the Arc Reflection mode
- Stores up to 15 traces in memory • Default setting of Auto Range and Auto Locate (can be overridden)
- 10.5” color LCD display with two halves; lower half for live waveforms and top for reference or memory
- RS- 232 interface for easy data transfer
