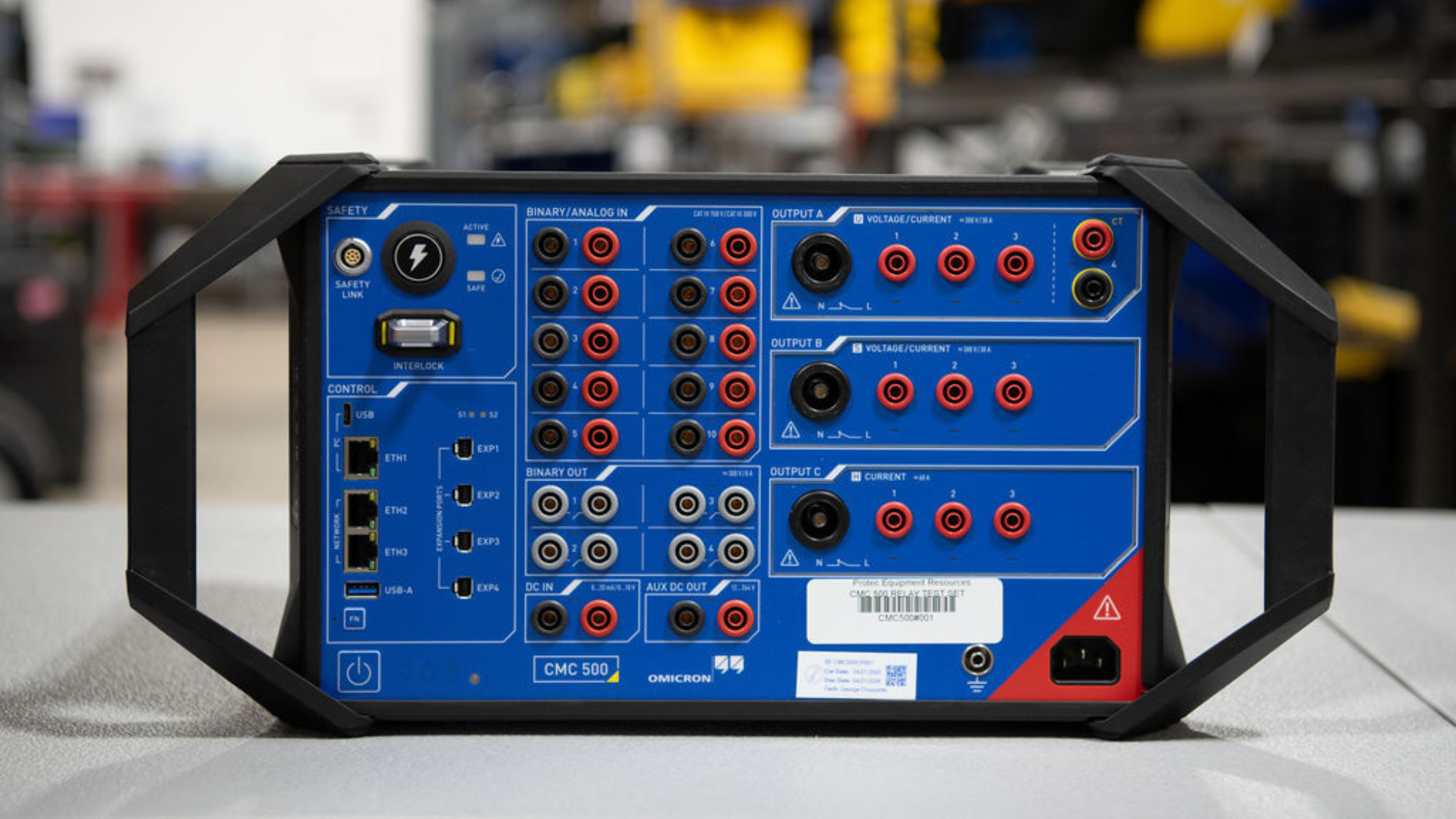

The OMICRON CMC 500 is a modular, lightweight (12”“15 kg) protection relay test set designed for high-precision testing of conventional and IEC 61850 digital substations. It features up to 10 current channels (up to 450A single-phase or 3x60A) and 7 voltage channels (300V each), supporting high-burden electromechanical to advanced digital IEDs. Key features include 40 kHz sampling for transient simulation, built-in network interfaces, and high-accuracy, 0-5 kHz frequency range capabilities.

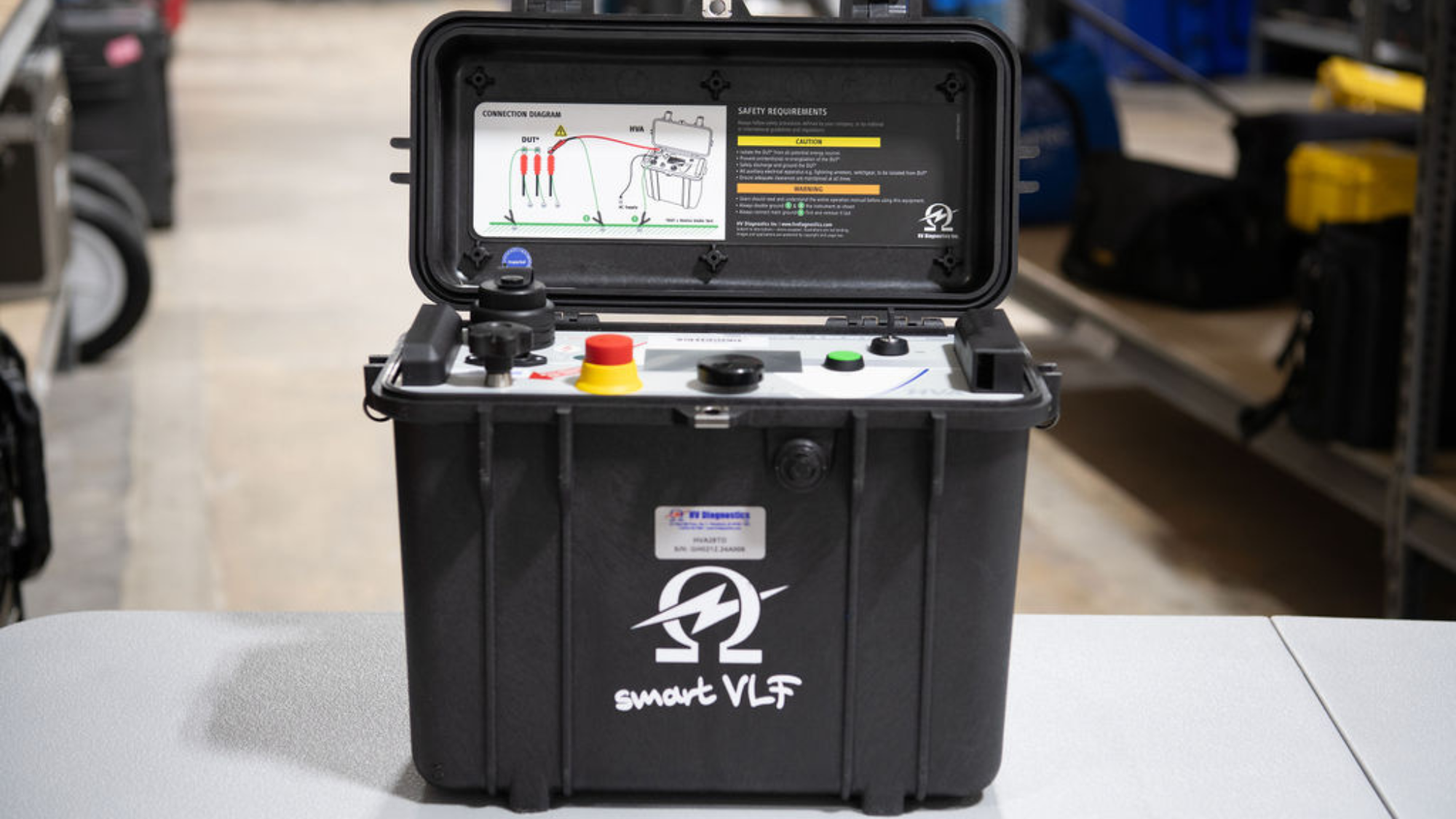

The HV Diagnostics HVA28TD 28kV VLF / DC High Voltage Test Instrument is the smallest VLF /DC unit on the market that includes an integrated Tan Delta (TD) measurement system to perform advanced electrical insulation diagnostics.

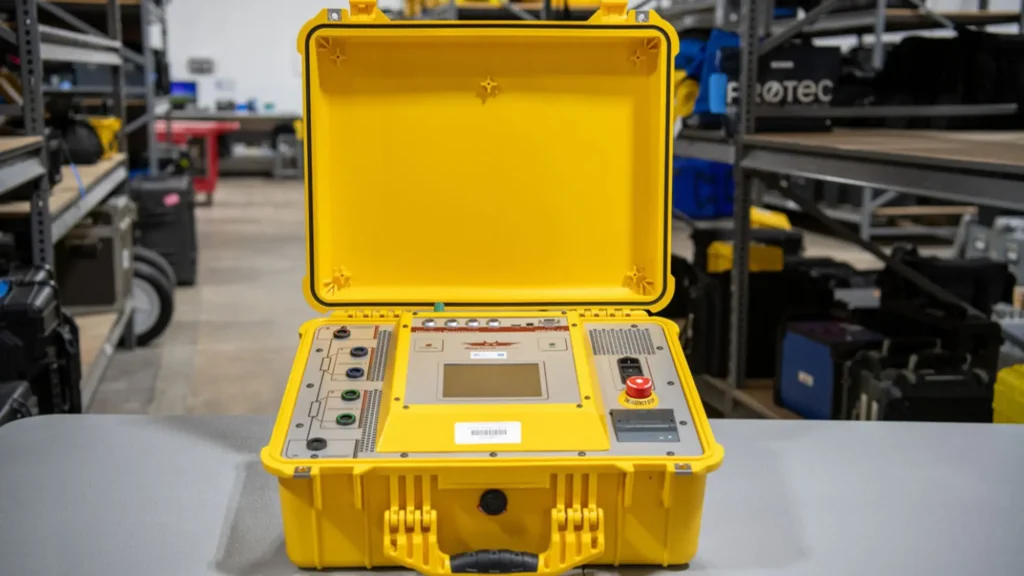

The winding resistance system with a most advanced demagnetizing circuit. It is designed for a high degree of accuracy for the measurement of very low resistance of any inductive load. The results are reported on the easy-to-read color LCD display and can be stored or printed. Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source, and the fastest discharge on the market.

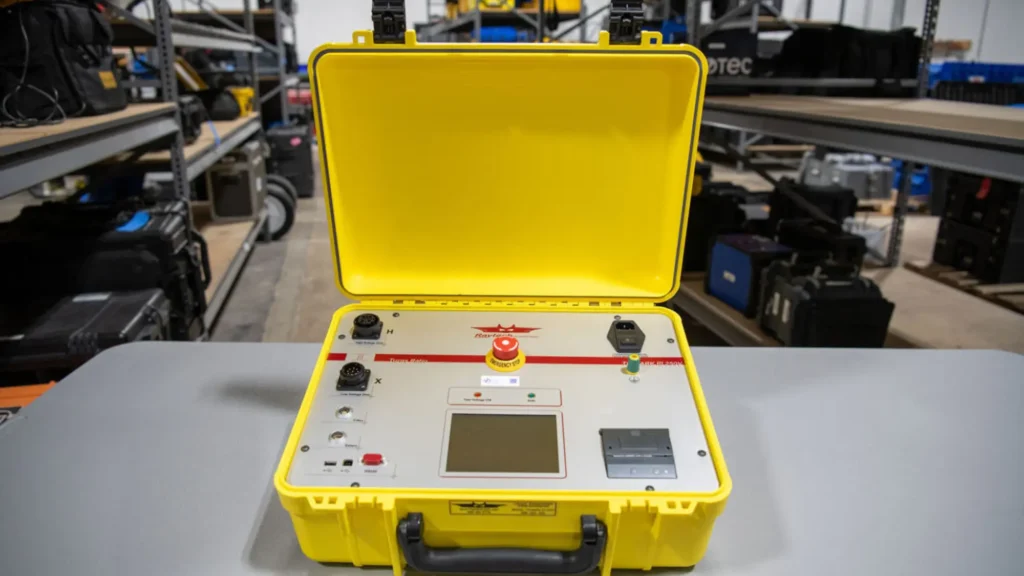

The Raytech TR-Mark III Three Phase TTR (Transformer Turns Ratio) is used in routine maintenance and acceptance testing and for investigating the core, windings, and tap changer settings of transformers for common problems.

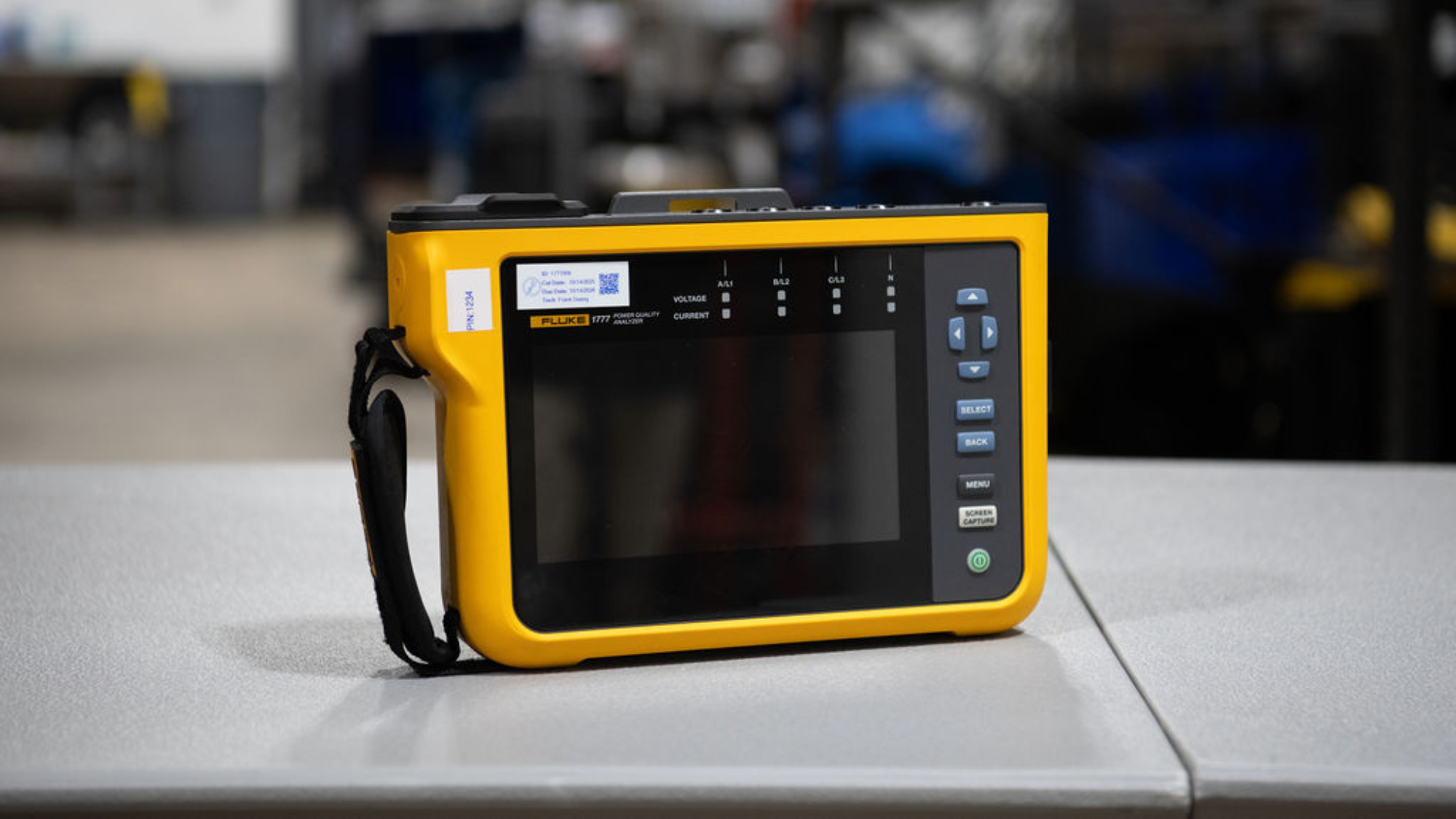

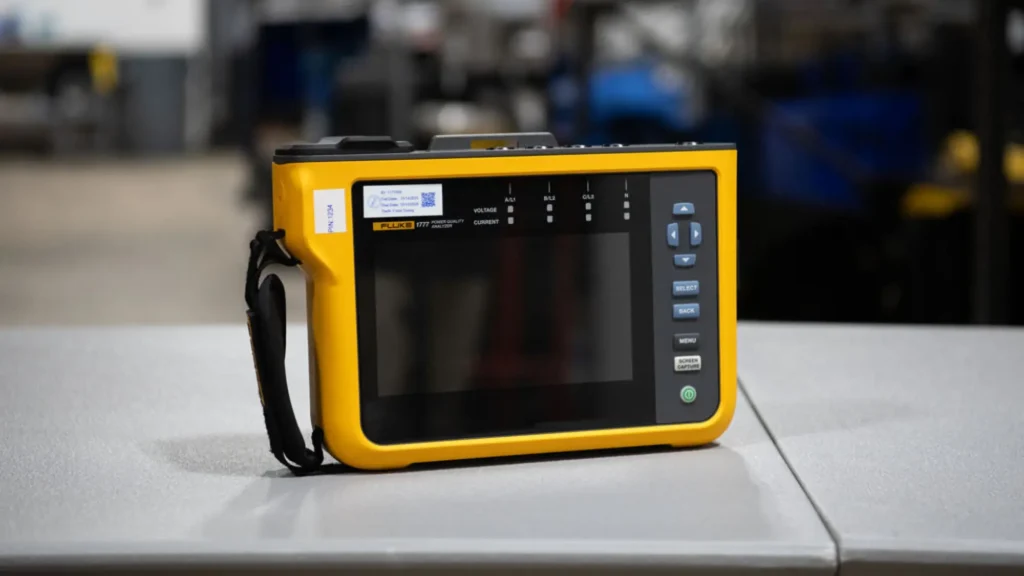

Three-phase power quality analyzer.Analysis and reporting comes standard with Fluke Energy Analyze Plus software, giving users ability to create customized reports, or leverage built-in one-click reporting to industry standards, like EN 50160, IEEE 519 and GOST 33073 Energy studies: Get detailed power and energy consumption profiles during energy audits and pinpoint savings opportunities.

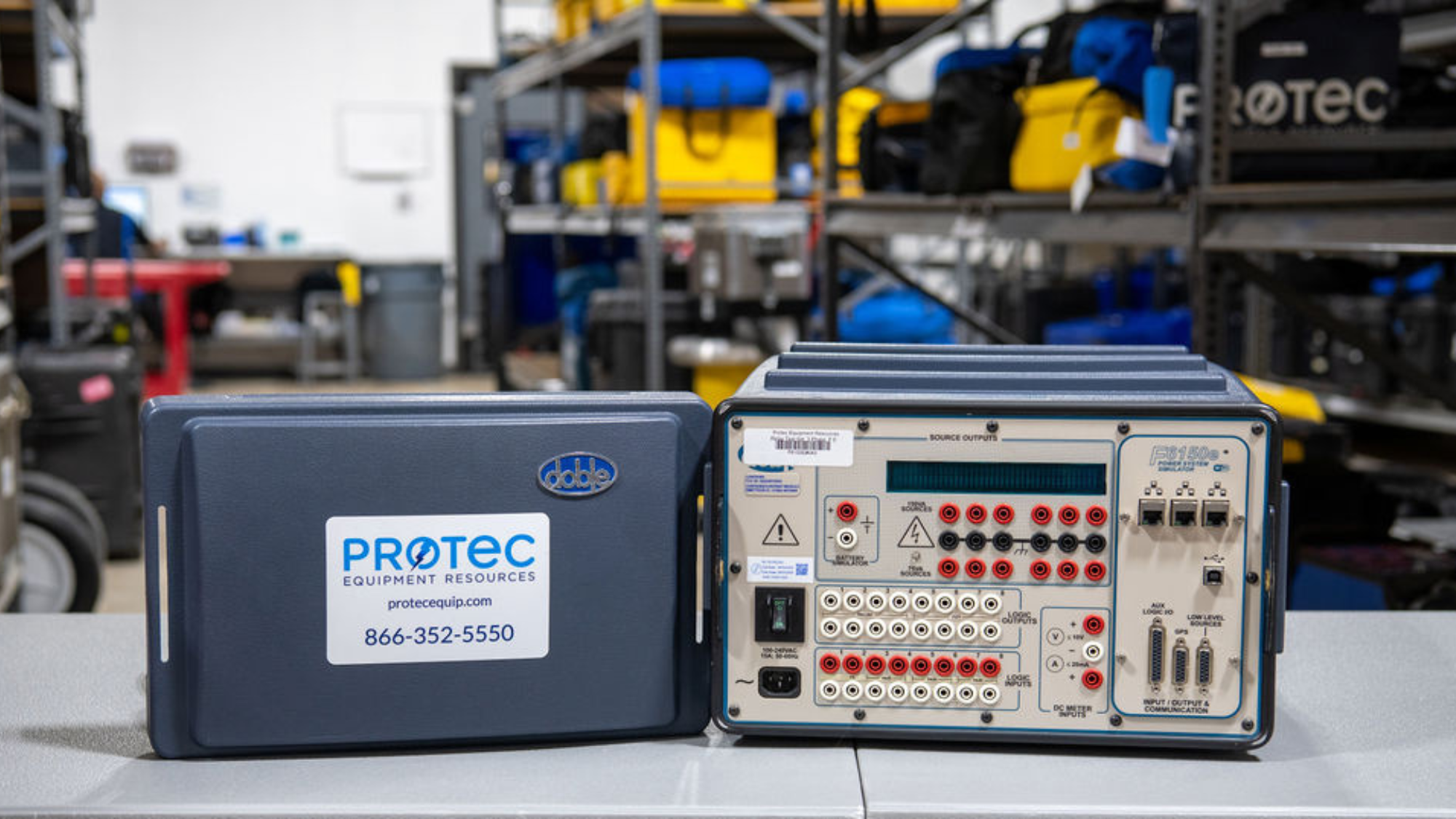

The Doble F6150e Relay Testing System tests protection relays, schemes and assess protection system performance for analog testing of 1A and 5A protection devices. To accept modulated or demodulated signals from station satellite clocks use in combination with the Doble F6051 Time Synchronizer.

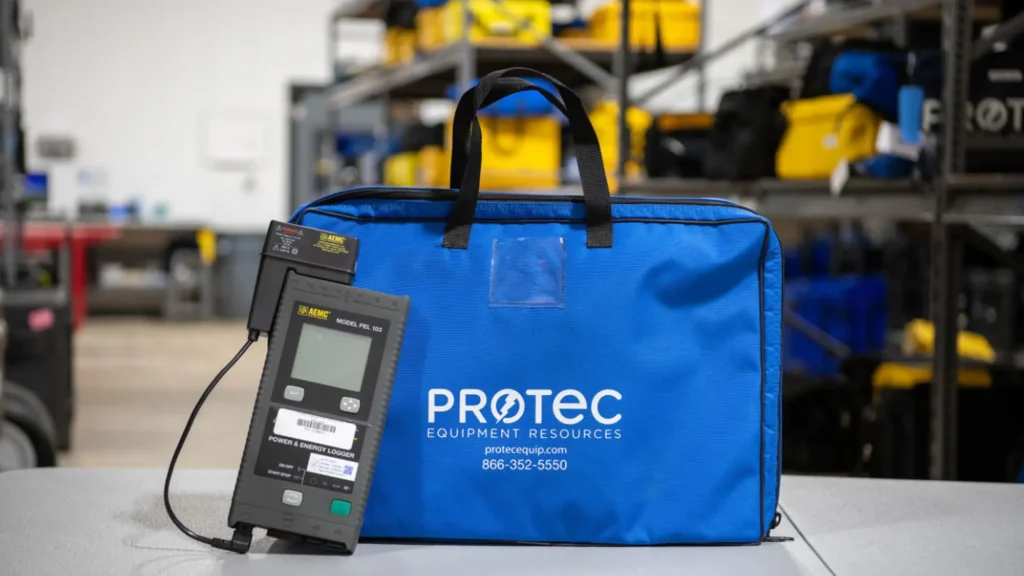

The AEMC PEL 103 is a 3-phase, 4-quadrant power/energy data logger featuring a backlit LCD, Bluetooth/USB/Ethernet communication, and 3-phase, split-phase, or single-phase Measurement capabilities.

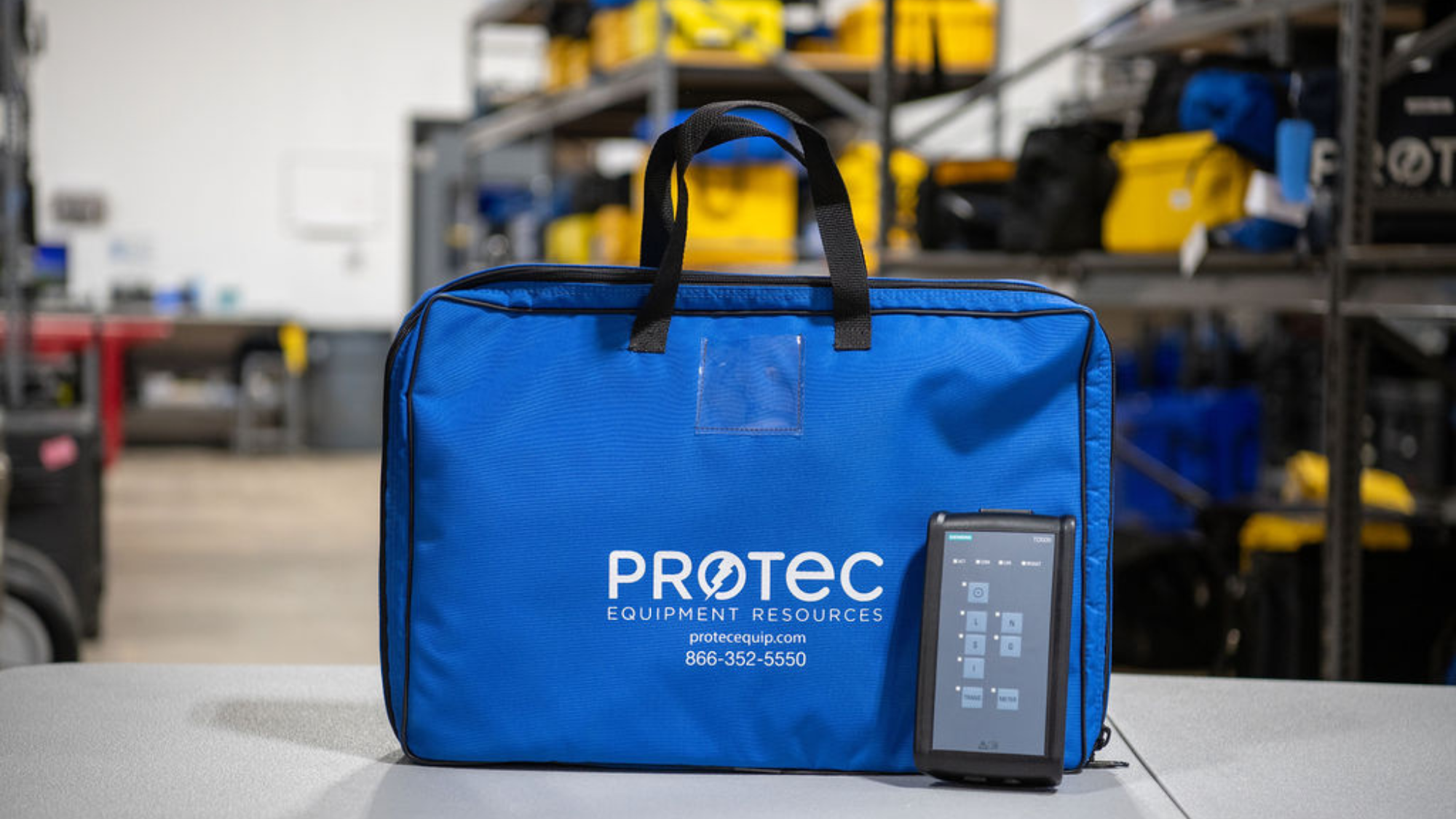

The Siemens TD500 Secondary Injection Test Set is used to test the Siemens 3VA family of circuit breakers with ETU trip units. The Siemens TD500 test device can be used to test the different causes of ETU trips. This enables testing of the functioning and wiring of all connected system components before the 3VA molded case circuit breaker is commissioned. During a test the system behaves as it would in the case of a real trip event.

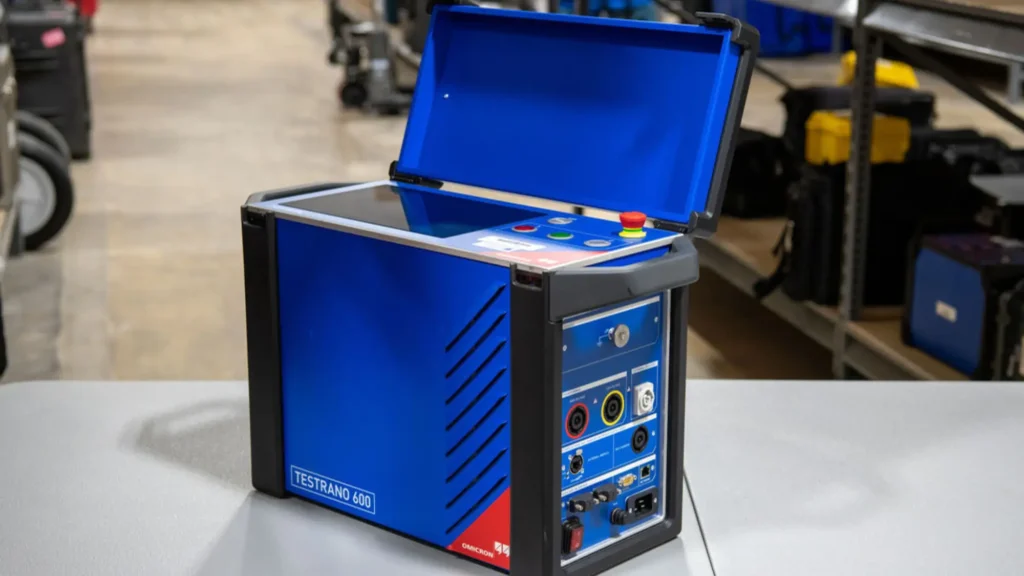

The Omicron TESTRANO 600 Three-phase Power Transformer Test System is a portable, three-phase power transformer test system, which supports most common electrical tests on power transformers for routine and diagnostic testing onsite or during factory acceptance tests (FAT).
By using TESTRANO 600 you can perform various tests on power transformers without re-connecting. The three integrated sources speed up testing as tests can be done on all three phases simultaneously. Thus, TESTRANO 600 cuts down testing time to one third compared to testing times with conventional single-phase test sets.

The Megger DLRO10HD 10A Digital Low Resistance Ohmmeter is a Heavy Duty DLRO that can supply 10 amps of current at 250 milliohms resistance (AVO DLRO).

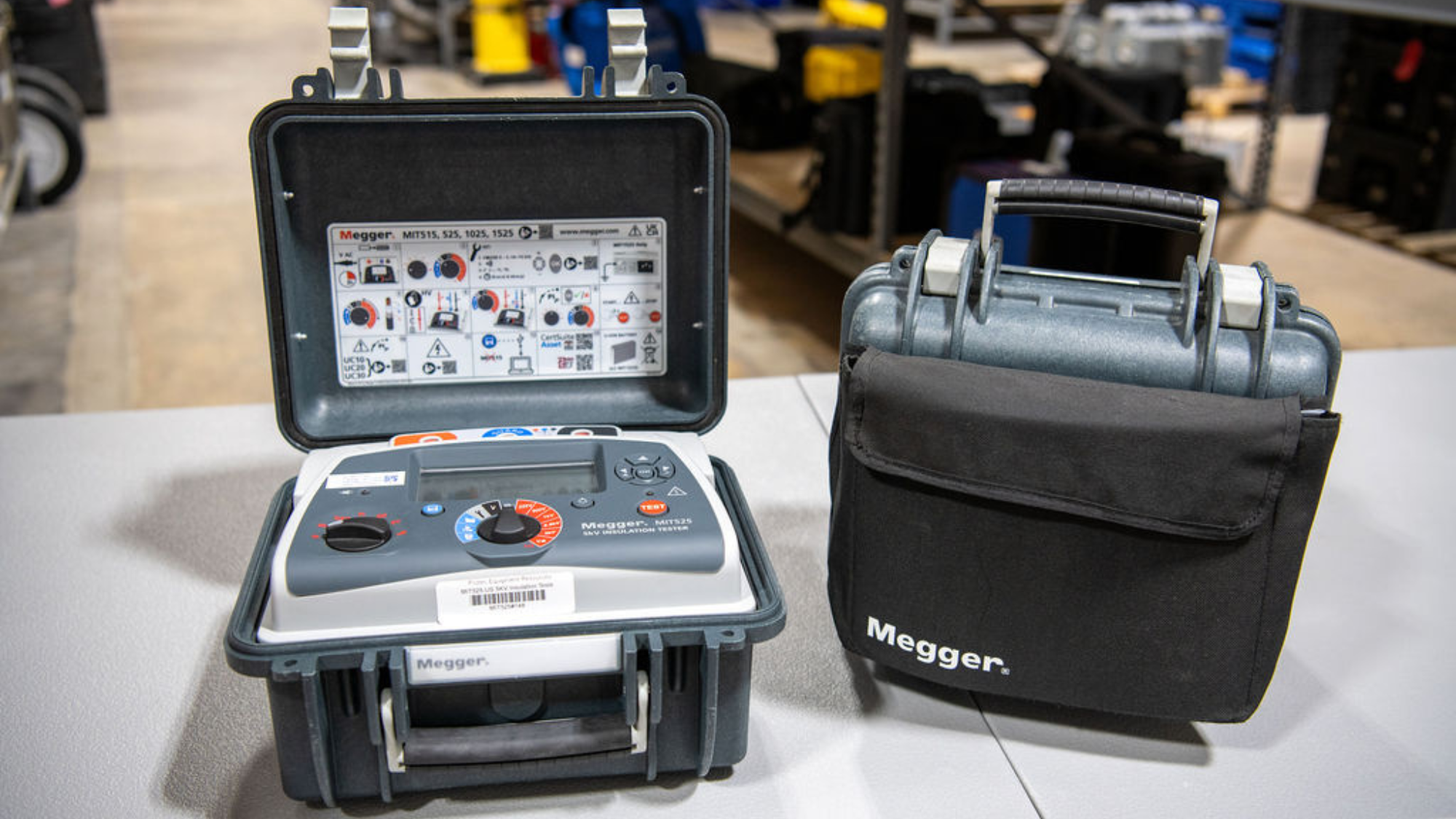

Offering CAT IV, the Megger MIT525 is compact, light 5kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. As well as measuring insulation resistance to 10 TΩ, the Megger MIT525 5kV Insulation Resistance Tester also offers various diagnostic tests such as polarization index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing.

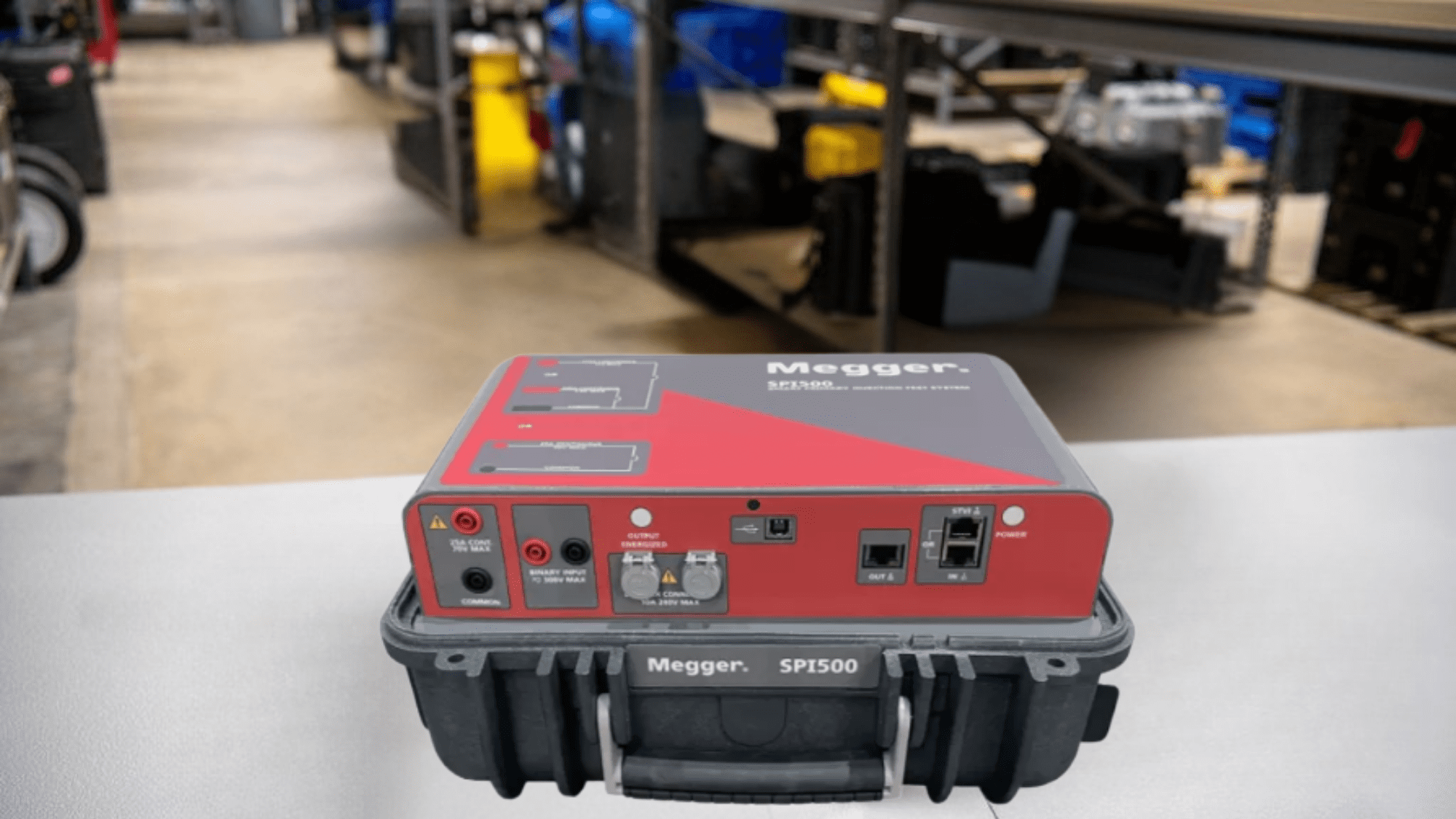

The SPI500 is a powerful and versatile testing system designed to meet the demanding needs of substation testing. It can handle a wide range of high-current tests, including those for electronic reclosers, circuit breakers, high-speed fuses, and ground fault relays.

With the ability to control up to two SPI500B boosters, the SPI500 can increase its testing capacity by up to three times. Its unique control system ensures accurate and reliable testing, even under changing load conditions.

The SPI500 offers both manual and automatic control options, with the Smart Touch View Interface (STVI) providing easy-to-use manual control and the PC-based control system enabling fully automated testing and report generation.

The SPI500 can test self-powered reclosers like the S&C Tripsaver with the push of one button. Also, the most portable test set for testing breakers under 600 A or for testing Modified Differential Ground Fault schemes (MDGF).
