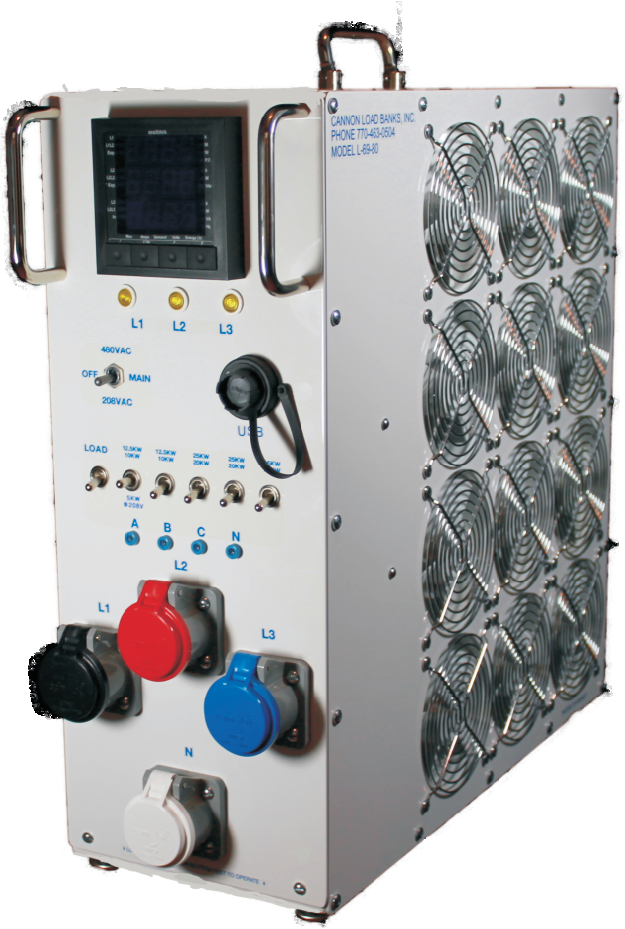

The Cannon Load Banks L-69-80D AC Load Bank is designed to provide a temporary load for field servicing and testing 480VAC and 208VAC three phase, 60HZ generators and inverters, and is air cooled. A 120VAC outlet is required to operate the fans and relays. The load is 100KW at 480VAC and 80KW at 208VAC. This unit will also test 120VAC & 240VAC single phase.

Cannon Load Banks L-69-80D AC Load Bank features:

• Load steps: 12.5, 12.5, 25, 25, 25 KW on three phase 480VAC
• Load steps: 6.5, 6.5, 13, 13, 13 KW on single phase 240VAC
• Load steps: 5 or 10, 10, 20, 20, 20 KW on three phase 208VAC
• Load steps: 1.6, 1.6, 3.2, 3.2, 3.2 KW on single phase 120VAC
• Tests 240VAC three phase, 240VAC single phase and 120VAC single phase Plug test pins for connecting test leads
• Cam-Lok connectors
• Meters: Digital Multimeter
• Power indicator lights
• Thermal protection
